1. College and university robot competitions
2. Research on lab robots
3. Further advancement in robotics.
4. Robots for pipeline and power plant detection, secondary development, etc.
1. Small size, light weight, easy to work in narrow places.
2. Rubber Track: with good ground adhesion.

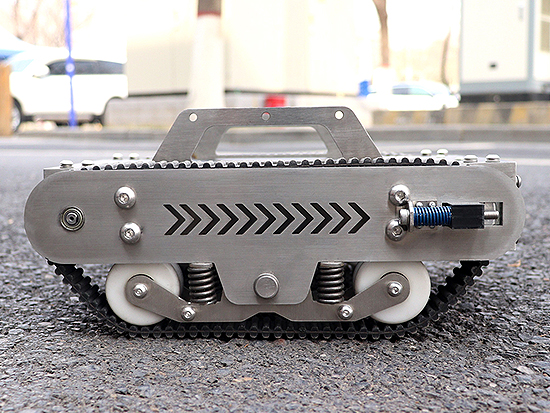

3. Patent Suspension System: 1) up-and-down fluctuation suspension system. 2) center of gravity shock absorption suspension. Our unique design.

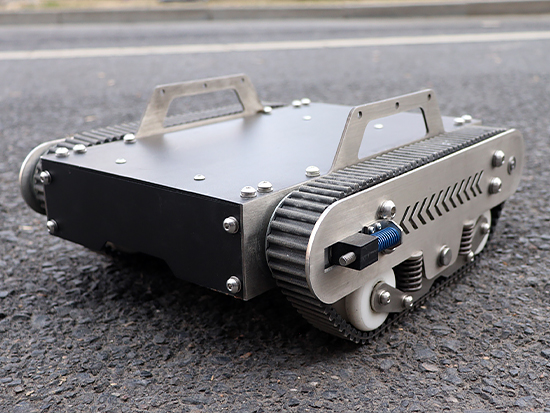

4. Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.
5. Separate Self-Control Circuit and Extending Circuit: 1) mechanical extending with detachable front/rear/and upper cover plates, greatly reducing customizing risk. 2) 1–2-way 10 core aviation plug extension, electrical extending with 5V3A, 12V3A circuit for 5/6/13 extending circuit.
6. Power part: brushless motor with closed-loop control and precision reducer control, with differential control, braking function, and motor protection system. Accurately control corners, speed, and travel. The motion trajectory can rotate in place or spiral as desired.

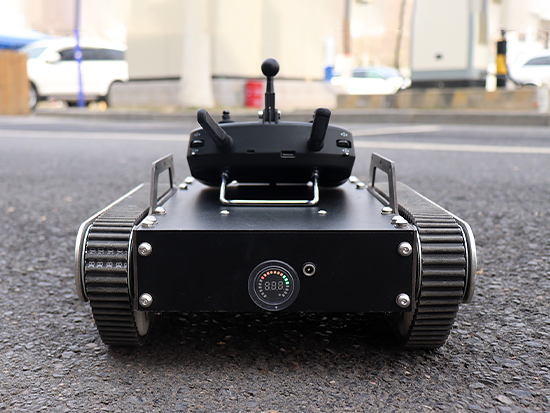

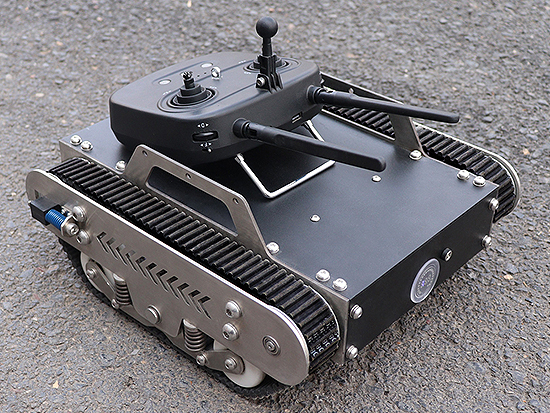

7. Control mode: Wireless mode supports 6 PWM servo control signals (car control occupies 4 channels).
| Item | Parameter | Item | Parameter |
| Dimension | 335*325*155mm | Shock damping | Left and right independent *2 shock absorption |
| Rated motor speed | 4000r/min | Operating Voltage | 12V |
| Surface treatment | Oxidation, 201 stainless steel | Maximum obstacle | 50mm |
| Track width | 30mm | Driving wheel diameter | 55mm |
| Maximum Climbing | 30° | Self weight (not include battery) | 8kg |
| Motor parameters | Power: 53W * 2, reduction ratio: 1:5.2, speed: 9KM/H, load capacity: 6kg | ||
| Power: 53W * 2, reduction ratio: 1:14, speed: 3KM/H, load capacity: 20kg | |||
| Battery | 12v 8AH Lithium iron phosphate battery, discharge current 8A | Battery compartment size | L125*W110*H45mm |
| Working time | 3-4H | Battery size | 135*72*35mm |
| Track grounding length | 165mm | Obstacle crossing ability | 80mm |
